The 4 main Refrigeration cycle components

We’ve all experienced it. You walk into a building on a sweltering day and are instantaneously enveloped by a refreshing blast of cool air. This comfort can be attributed to the refrigeration cycle by air conditioning. While numerous heating and cooling techniques exist, the core principle remains consistent and is utilized across numerous sectors and applications. But how does it function? This article will delve into that by highlighting the key elements of a typical refrigeration loop and their respective roles.

Understanding the Refrigeration Cycle

In essence, the purpose of a refrigeration cycle is to absorb and reject heat. As any HVAC trainer will stress, you cannot create cold; you can only eliminate heat. The refrigeration cycle, often referred to as a heat pump cycle, effectively channels heat away from the space you wish to chill. This is achieved by adjusting the pressure of the working refrigerant (which can be air, water, or various synthetic substances) through a process of compression and expansion.

Stay informed about heat transfer concepts by subscribing to The Super Blog, our technical blog, Doctor’s Orders, and by following us on LinkedIn, Twitter, and YouTube.

That summarizes the basic concept, but now let’s explore the machinery that carries out this task. While many components are typically found in refrigeration loops, most experts agree that the fundamental parts of a basic cycle are:

The compressor
The condenser
The expansion device
The evaporator

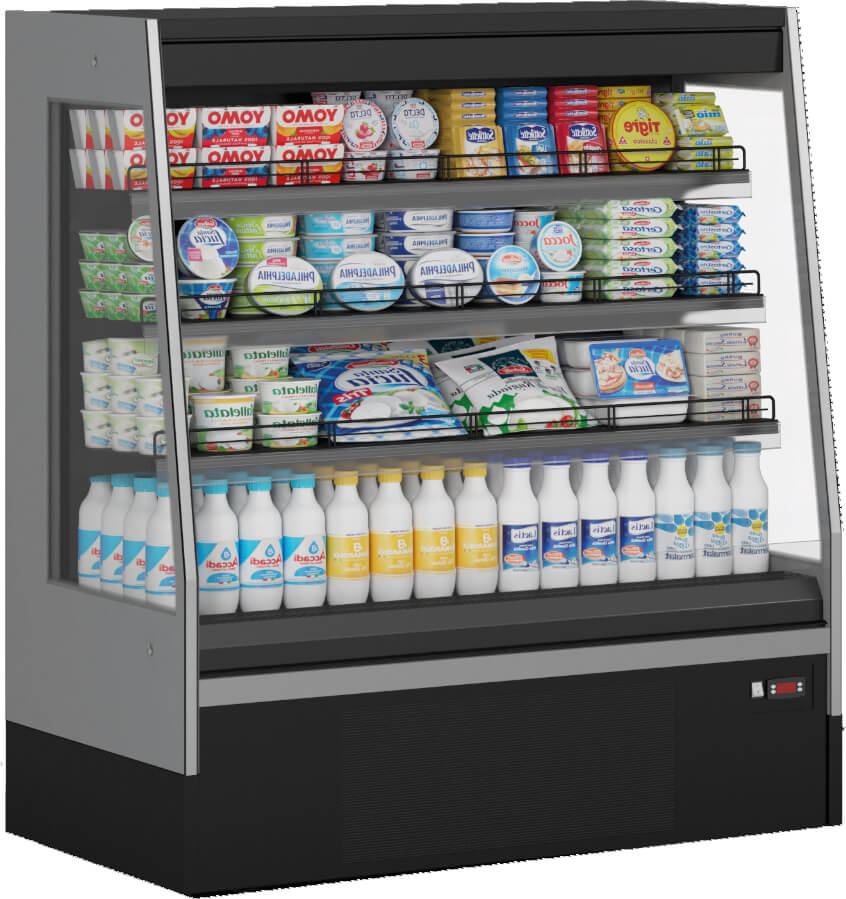

Refrigerated display case filled with dairy products, including milk, yogurt, and cheese.

The Compressor

The refrigeration cycle begins with compression, a process carried out by the compressor, which raises the pressure of the working gas. The refrigerant enters the compressor as a low-pressure, low-temperature gas and exits as a high-pressure, high-temperature gas.

Types of Compressors

Compression can be performed using various mechanical methods, leading to multiple compressor designs in today’s HVAC and refrigeration fields. Among several options, the most common types include:

Reciprocating compressors
Scroll compressors
Rotary compressors

The Condenser

The condenser, also known as the condenser coil, is one of the two heat exchangers in a basic refrigeration loop. It receives high-pressure, high-temperature vaporized refrigerant directly from the compressor. The condenser extracts heat from this hot refrigerant vapor until it transforms into a saturated liquid, a process referred to as condensation.

Once the refrigerant has condensed, it is now a high-pressure, low-temperature liquid that moves on to the loop’s expansion device.

The Expansion Device

These devices come in several designs, including fixed orifices, thermostatic expansion valves (TXVs), and the more sophisticated electronic expansion valves (EEVs). Regardless of the type, the function of any expansion device is to create a pressure drop once the refrigerant exits the condenser. This reduction in pressure causes some of the refrigerant to rapidly boil, producing a two-phase mixture.

This swift phase change is known as flashing, which prepares the next component in the cycle, the evaporator, to perform its role.

The Evaporator

The evaporator acts as the second heat exchanger in a standard refrigeration system and, similar to the condenser, is named for its primary role. It represents the “business end” of the refrigeration cycle, as it performs the essential task of heat absorption, which is what we expect from air conditioning.

This occurs when refrigerant enters the evaporator as a low-temperature liquid under low pressure, and a fan circulates air across the evaporator fins, cooling the air by absorbing heat from the surrounding space into the refrigerant.

How The Cycle Repeats

After this absorption, the refrigerant returns to the compressor, where the process begins all over again. That is the essence of how a refrigeration loop operates. If you have any questions regarding the refrigeration cycle or its components and operations, reach out to us. We’ve been assisting customers in maximizing their HVAC and refrigeration systems for nearly a century.
